Introduction

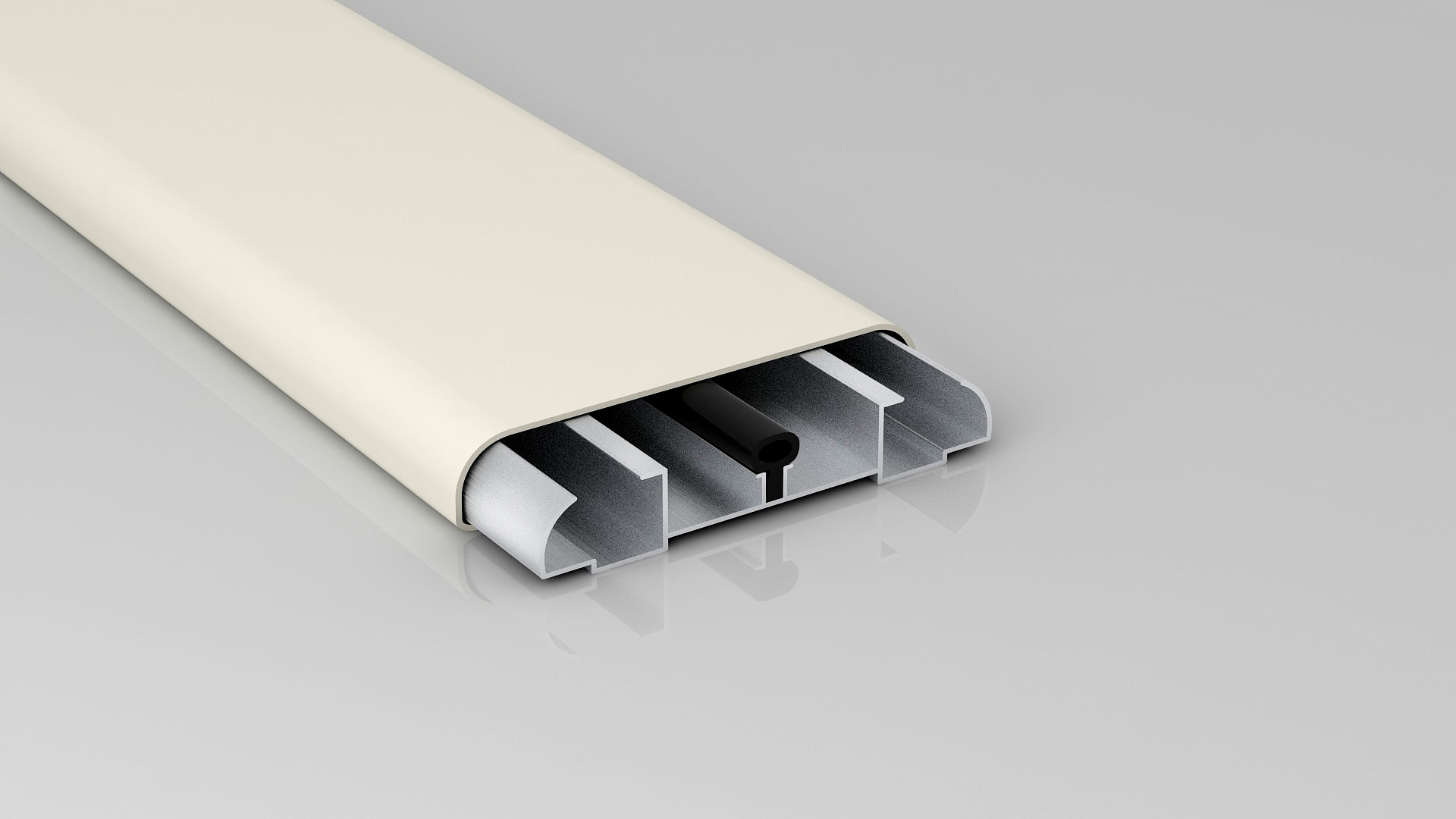

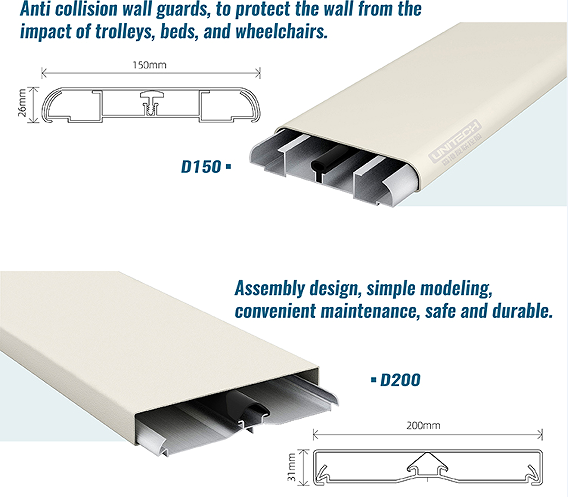

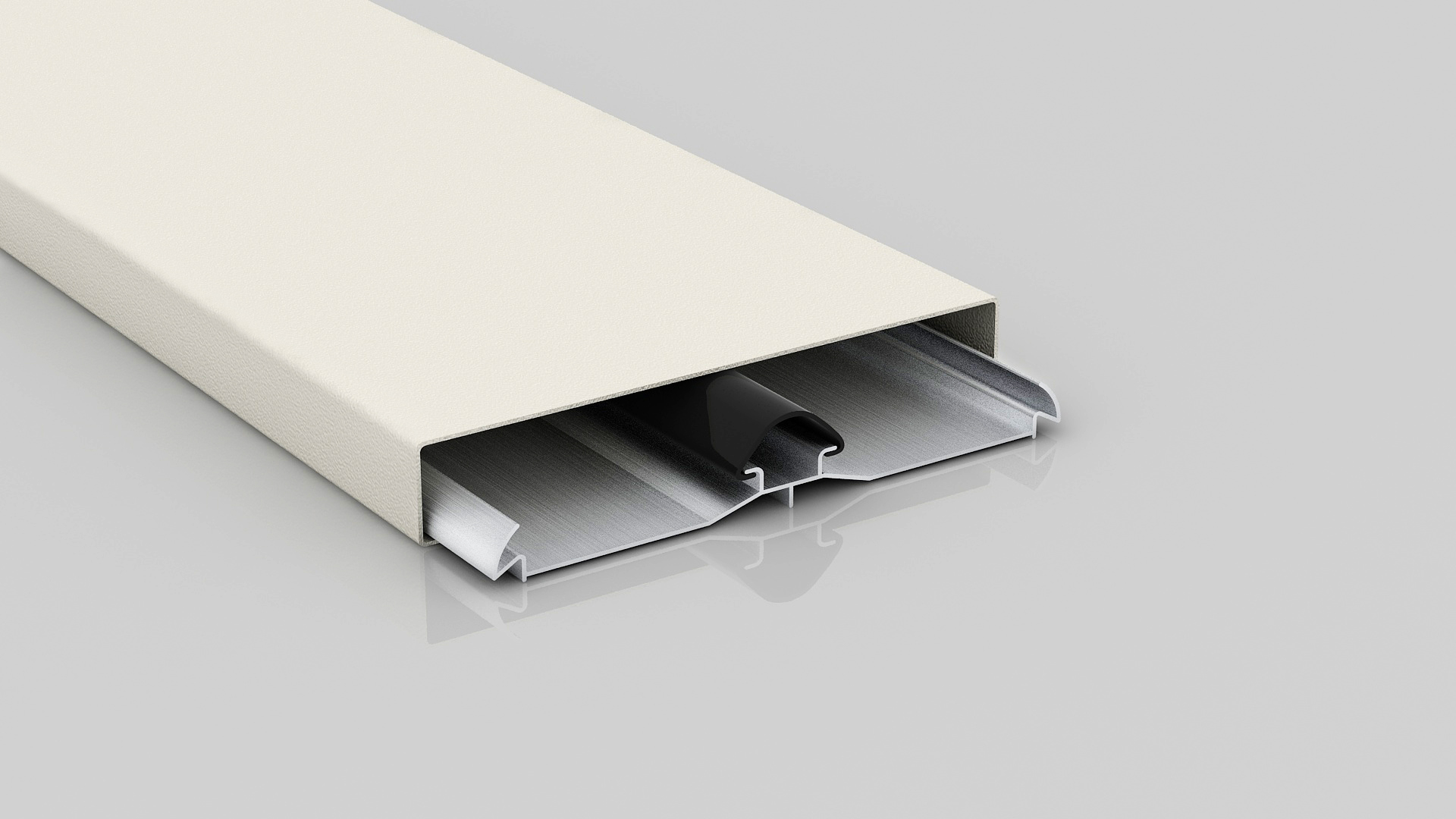

Wall guards are modular in construction and are suitable for use in busy working environments such as hospital circulation areas, wards and corridors to protect against damage caused by wheeled and pedestrian traffic. D150/D200 wall guard comprises an aluminum retainer, internal PVC-u bumper, PVC-u cover and PVC-u end caps. It has been designed to provide a tight fit to the wall to minimize the collection of dirt and dust.
Features
1. Perfect alliance between impact resistance and design.
2. Minimized projection thanks to its narrow beveled end pieces.
3. Optimal hygiene thank to the wall-hugging and the reduced retention surfaces due to the reinforced lips.
4. Easy installation on aluminum brackets or option on continuous aluminum rail.
Technical Data
6. Surface finish: mattified with central boss
7. Fixing: mechanical (screw) fix
Installation
1. Using an alignment laser, position the pre-drilled aluminum clips against the wall at the desired height, aligning the v-notch on the center-line of the clips with the laser level.
2. Where an end cap is to be fitted, use a 6.0mm drill bit to drill 2 holes in the fixing clip using the high and low v-notches of the clip at 10mm from each end.
3. Loosely fit all the clips using the top hole of each clip.
4. Take a measure of the distance between the outside edges of 2 end clips, minus up to 5mm, as a measure of the bumper section.
5. Before fitting the end caps, measure the distance between the outside edges of the 2 end fixing clips and add 5mm in total as the cut length for the PVC-u cover.
6. Fit the end-caps onto the end retainer clips and secure them using the supplied screws, 2 per end cap.
7. Cut the PVC-u cover as per point 5, taking care to ensure that the cuts are both square and clean.

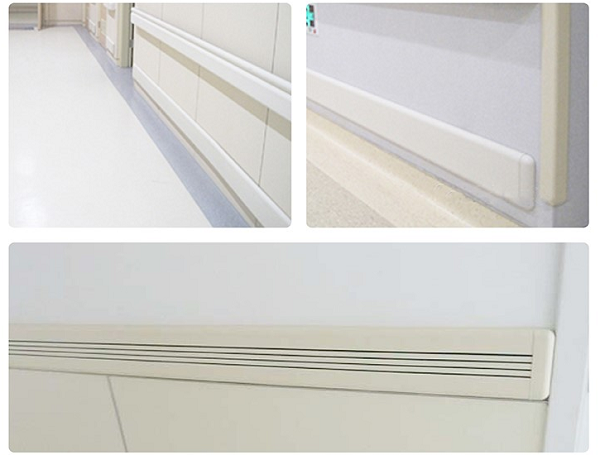

Wall Protection Where It Matters Most
In hospitals and care facilities, corridors are prone to damage from beds, trolleys, and wheelchairs. Our D150/D200 Horizontal Wall Guard prevents scuffs, dents, and scratches, reducing long-term maintenance costs. It works perfectly alongside hospital corner guards and plastic handrails to provide all-around protection.
Compatible with Hospital Handrail Systems
This wall guard is not just standalone—it’s designed to work in tandem with hospital handrails. Whether used below safety handrails or as an alternative in specific zones, it enhances patient safety by reducing wall contact while maintaining clean lines and ergonomic corridor designs.
Durable Plastic Handrails for Long-Term Use
Constructed with a strong PVC-U outer layer and internal aluminum reinforcement, this system functions as a reliable protective barrier, just like robust plastic handrails. The materials used are ideal for healthcare settings due to their durability, hygiene, and easy maintenance.
Supportive for Elderly Care Environments
In facilities catering to older adults, pairing the wall guard with handrails for elderly ensures added safety. The smooth surface and reduced projection make it safe to walk alongside, offering visual guidance and edge protection without obstructing movement.
Safe, Hygienic, and Aesthetically Minimal
With a slim, rounded design and beveled end caps, the D150/D200 Horizontal Wall Guard minimizes injury risk while offering a hygienic surface that’s easy to clean. Its integration with hospital corner guards and plastic handrails ensures a seamless visual flow across the space.
Product Advantages
- Complements hospital handrails and hospital corner guards for full wall protection
- Made from impact-resistant PVC-U with reinforced aluminum for durability
- Functions similarly to plastic handrails in strength and longevity
- Ideal in elderly care corridors when combined with handrails for elderly
- A sleek, clean look with high performance as safety handrails alternatives in some zones
