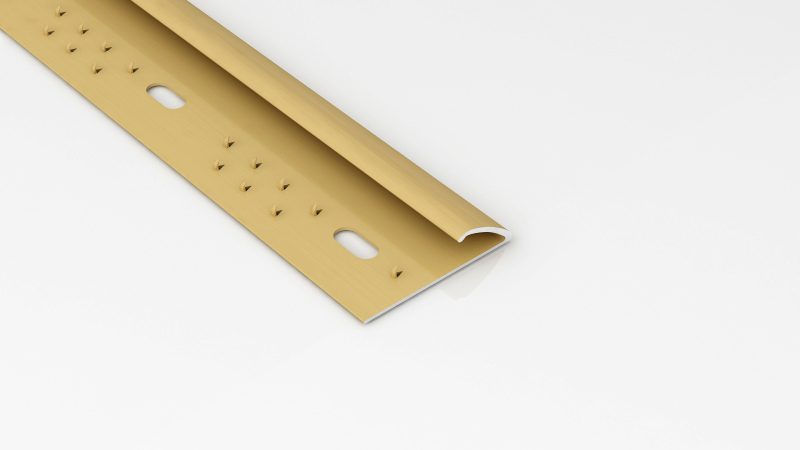

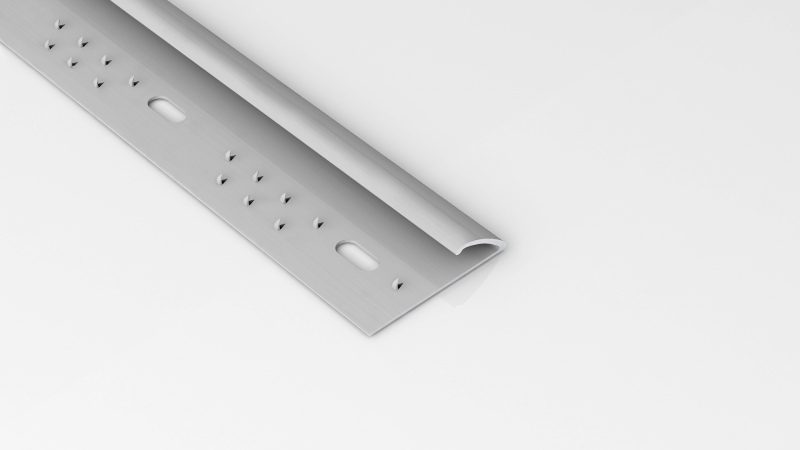

Aluminum Carpet Edge Trim

Item No.: L35/L38
L35/L38 is an aluminum nap trim designed to join different types of floorcoverings. Perfect for commercial or residential applications where strong protection is important.
Description
Description
Introduction

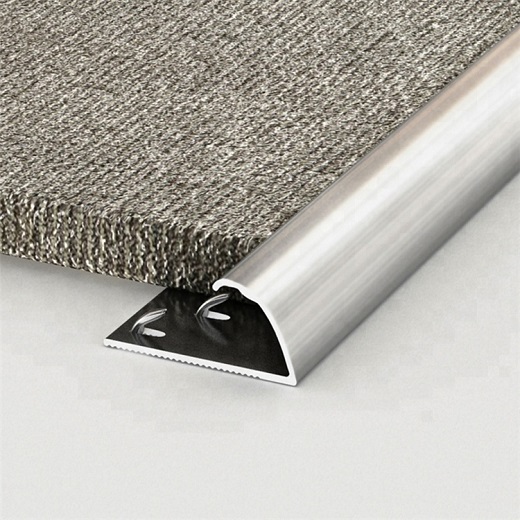

L35/L38 is an aluminum nap trim designed to join different types of floorcoverings. Perfect for commercial or residential applications where strong protection is important. The design of the profile allows the edge of the carpet to be secured and concealed, thus providing a neat finish and protecting the raw edge of the carpet. The carpet is fitted into the profile and then the top is flattened into the carpet pile to provide a secure fit. It is recommended that the carpet is sealed to reduce the risk of fraying before the profile is flattened down.
Technical Data
1. Type: Nap trim
2. Environment: interior
3. Material: 6063 anodized aluminum

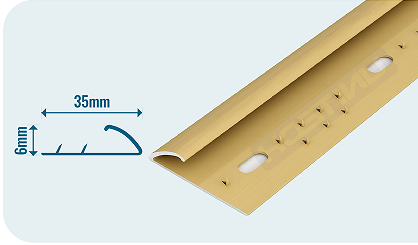

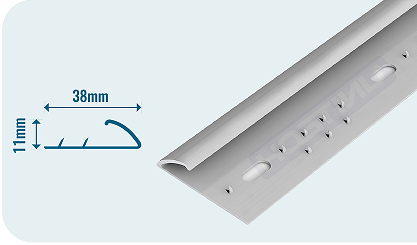

4. Profile height: 6/11mm
5. Fixing: mechanical (screw) and adhesive fix

Installation
1. It should be ensured that all surfaces to which the profile is to be fixed are dry, flat and free from any contaminants.
2. Cut the profile to the size required.
3. Place the base into position and through the pre-drilled holes, mark the substrate.
4. Drill the marked substrate using a 6mm drill bit and once drilled insert the appropriately sized plug.
5. Apply a bead of proprietary cartridge adhesive to the underside of the profile, then, ensuring the substrate is free from dust, firmly place the base into position.
6.  Secure in place using a No6 fixing screw.
7. Once secured, install the carpet into the profile (it is recommended that the carpet is sealed to avoid any fraying). Using a rubber mallet and timber baton firmly strike the top of the section so it flattens into the carpet pile. Continue this process along the profile length until the whole of the top section sits flat.
