Introduction

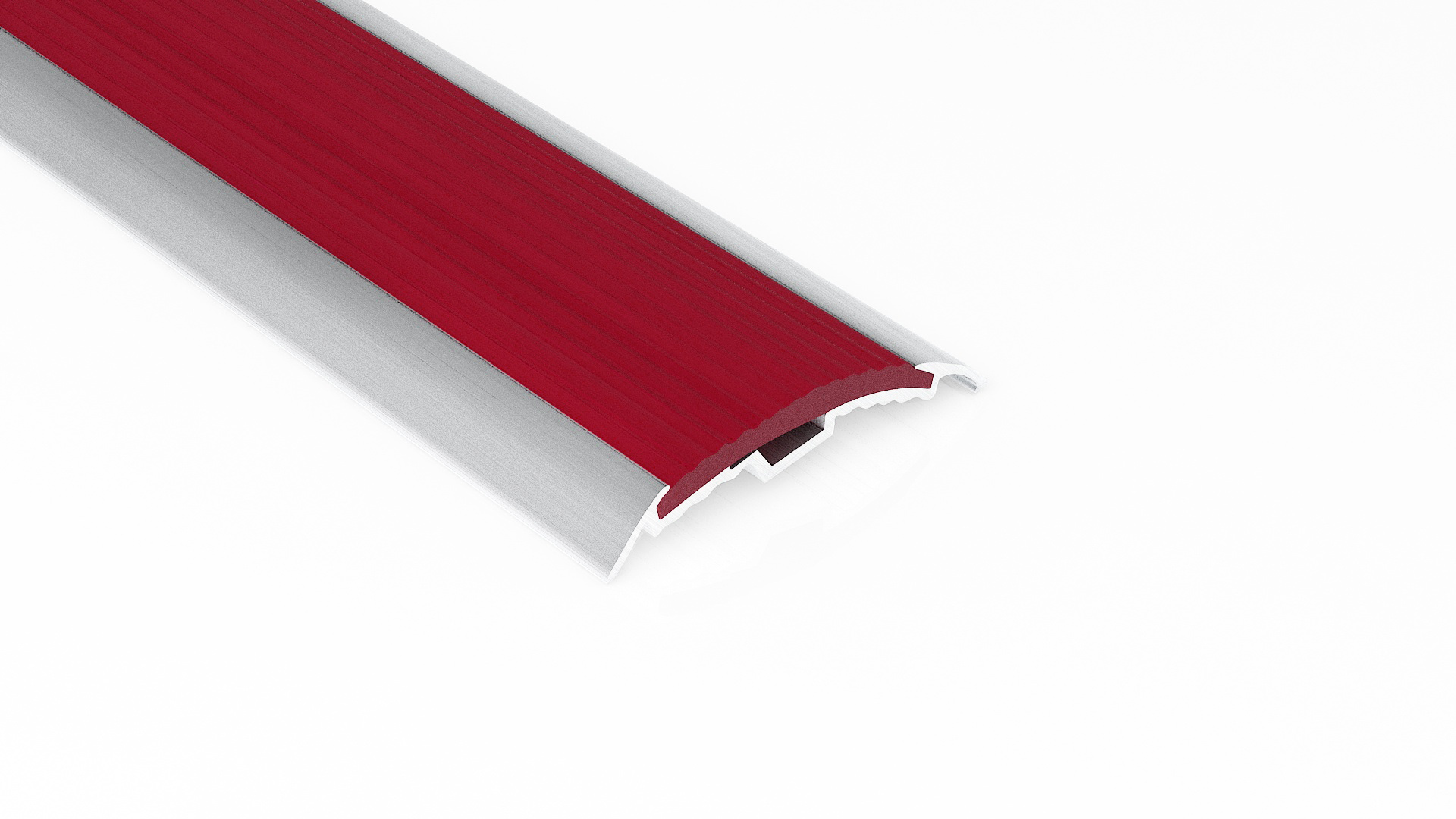

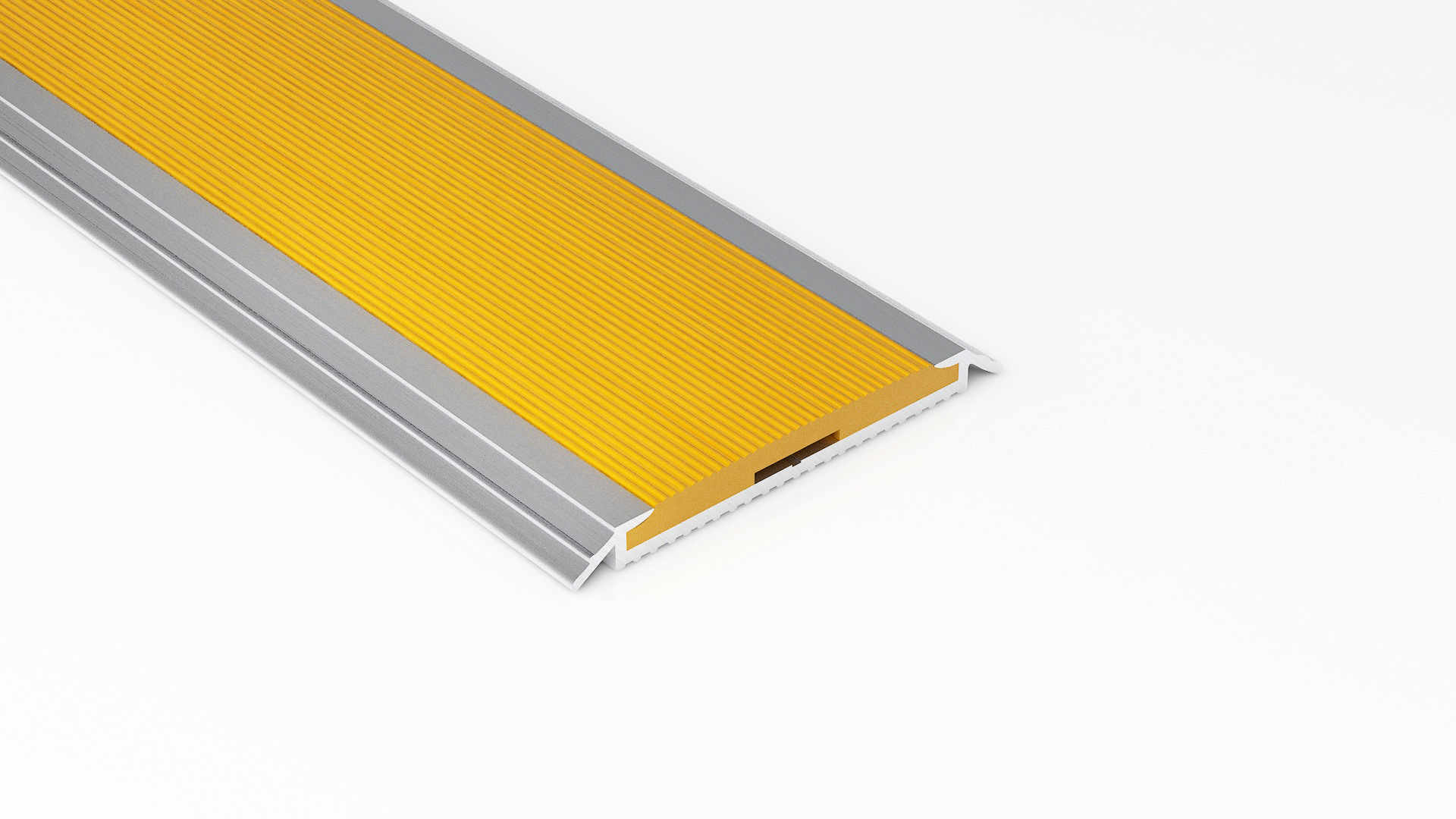

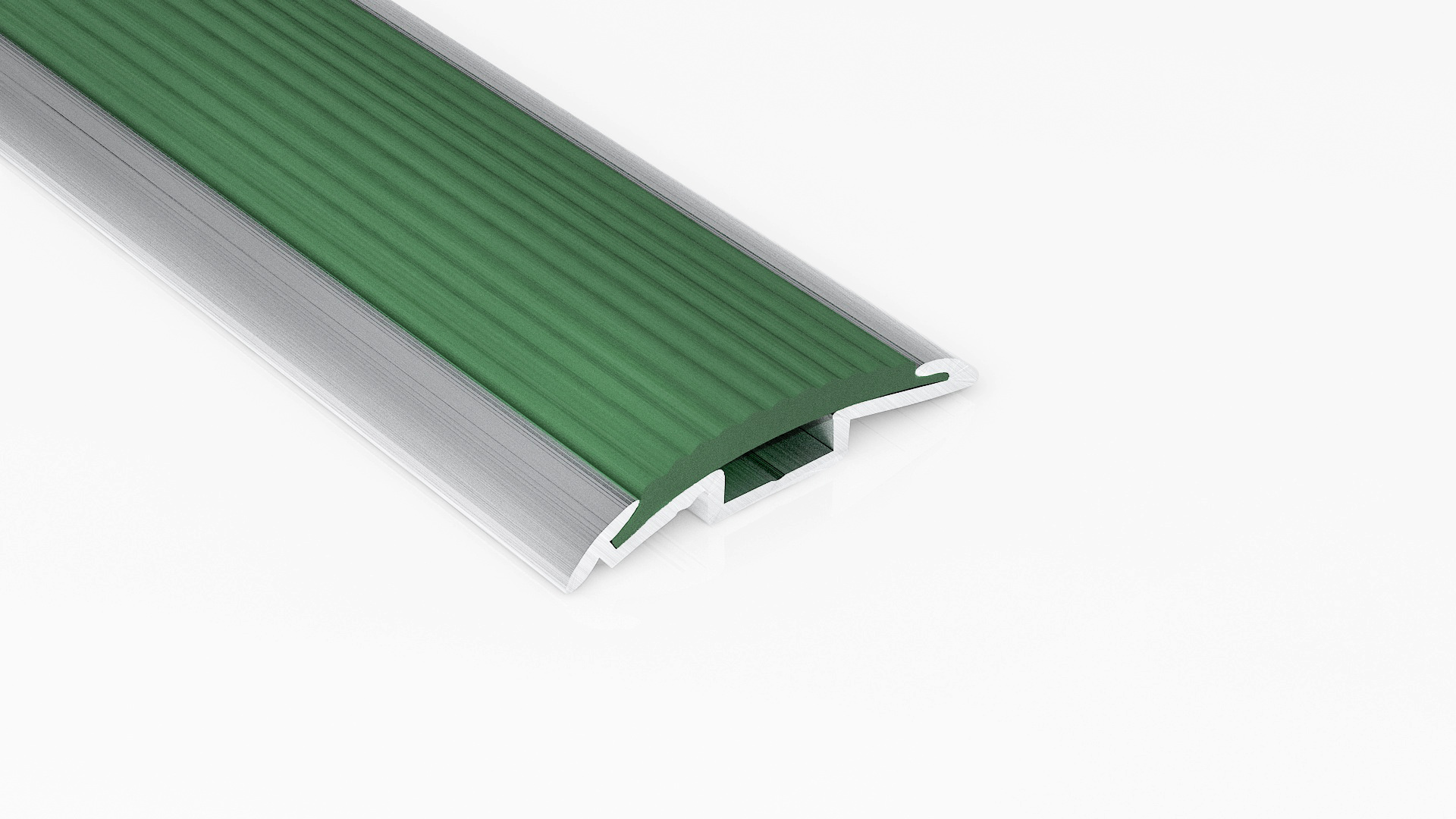

Unitech trans-edge trims reduce the risk of accidents for pedestrian and trolley traffic by providing a safe link between floorcoverings. It is manufactured using high quality aluminum to withstand repeated heavy traffic impacts. It provides a neat transition between carpet finishes. It features a slip-resistant PVC insert available in 3 colors. The insert is fitted on-site once the aluminum base has been fitted, therefore offering a concealed fixing. This profile is designed for use in severe pedestrian and trolley traffic applications e.g railway stations, airports, transport interchanges, department stores, high street shops and hospitals.
Technical Data
3. Material: aluminum PVC

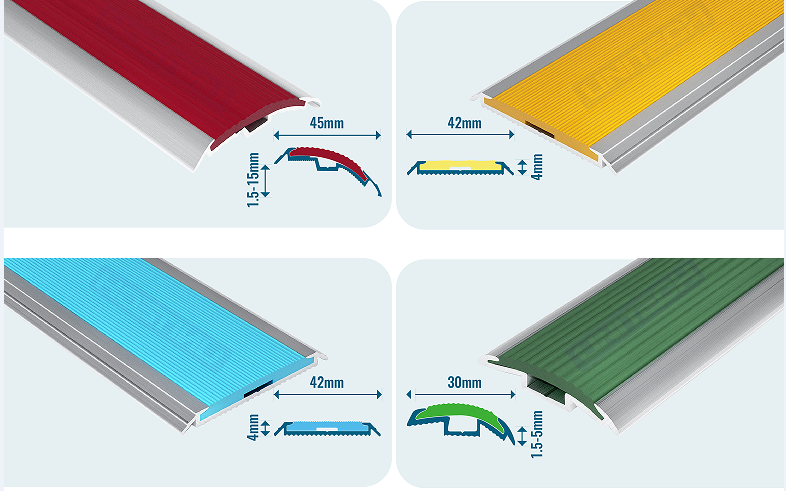

5. Total height: 1.5-15mm
6. Color: red, green, yellow, black, blue
7. Fixing: mechanical (screw) and adhesive fix
Installation
1. Before installation, ensure that all surfaces to which the profile is to be fitted are dry, flat, free from any debris or contaminants and in an ambient temperature not less than 18C.
2. Cut the profile to size required.
3. Place the profile in position and mark the position of the screw holes onto the substrate.
4. Drill the substrate to a depth of 30-35mm and insert suitable fixing plugs into the holes.
5. Apply high performance cartridge adhesive with gap filling properties to the back of the profile and place onto the substrate.
6. Using 6mm screws fix through the profile, into the plugs and tighten.
7. Clean out the profile channel and install the insert
8. When using heat care should be taken not to overheat the insert. Only enough heat should be applied that makes the insert more supple NOT hot.
9. After the aluminum ramp profile has been secured to the subfloor, cut the insert material to 10mm longer than required.
10. Starting from one end of the profile, remove the release paper from the tape on the back of the insert and fit into the profile channel, ensuring the insert is butted tight to the wall.
11. Continue fitting the insert into the channel for approx. one third the length of the profile.
Smooth Integration with Cove Skirting Systems
For installations that incorporate vinyl capping strip, cove cap skirting, or pvc cove former, the Trans-Edge Type Floor Transition Strip provides the necessary connection between floor coverings. Whether you’re installing homogenous vinyl or safety flooring, this transition strip completes the system with a safe and aesthetic edge.
Durable Aluminum Base with PVC Insert
The high-grade aluminum base offers excellent stability in high-traffic areas, while the anti-slip PVC insert enhances traction. This makes it a perfect match for cove cap skirting applications in hospitals, labs, and other hygiene-sensitive environments where floor safety is critical.
Perfect for Hygienic and Seamless Flooring Projects
By working in tandem with pvc cove former and vinyl capping strip, this transition strip allows for fully sealed floor-to-wall systems. The result is a smooth, easy-to-clean flooring layout that meets stringent hygiene standards, particularly in healthcare and cleanroom installations.
Safe and Efficient Floor Transitions
Uneven transitions between different flooring types—such as between vinyl and carpet or tiles—can pose safety risks. The GREEN POINT transition strip creates a smooth ramped edge that integrates flawlessly with vinyl capping strip and cove cap skirting systems, reducing trip hazards.
Easy Installation and Aesthetic Design
This product allows for concealed fixing and easy on-site insert application, ensuring both clean installation and compatibility with your pvc cove former system. The result is a professional-grade finish suitable for both renovation and new flooring projects.
Product Advantages
-
Fully compatible with vinyl capping strip, cove cap skirting, and pvc cove former
-
Anti-slip PVC insert for added safety in commercial environments
-
Concealed fixing design for a neat appearance
-
Ideal for hospitals, stations, airports, and industrial floors
-
Durable aluminum body withstands heavy traffic and wear
