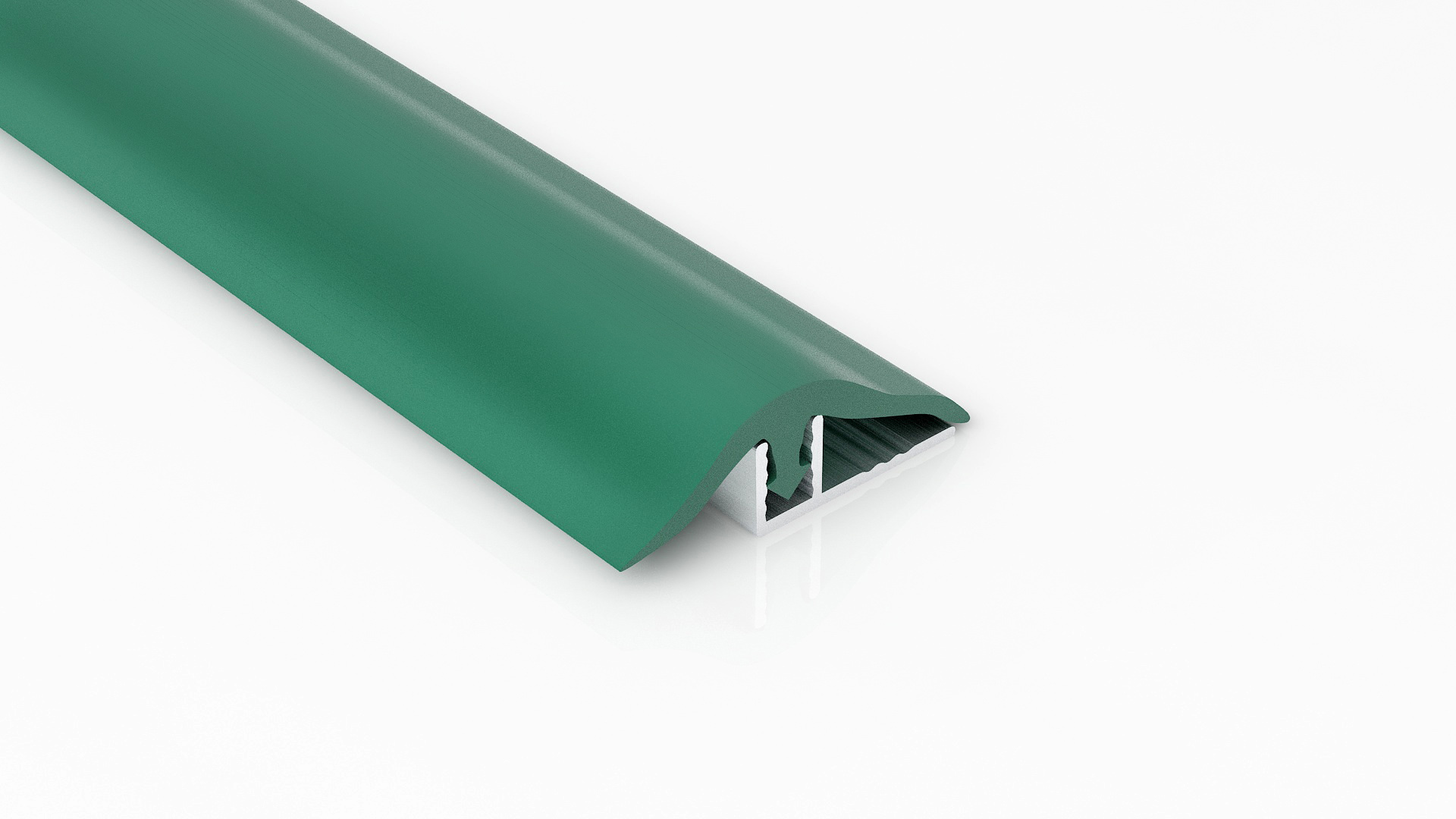

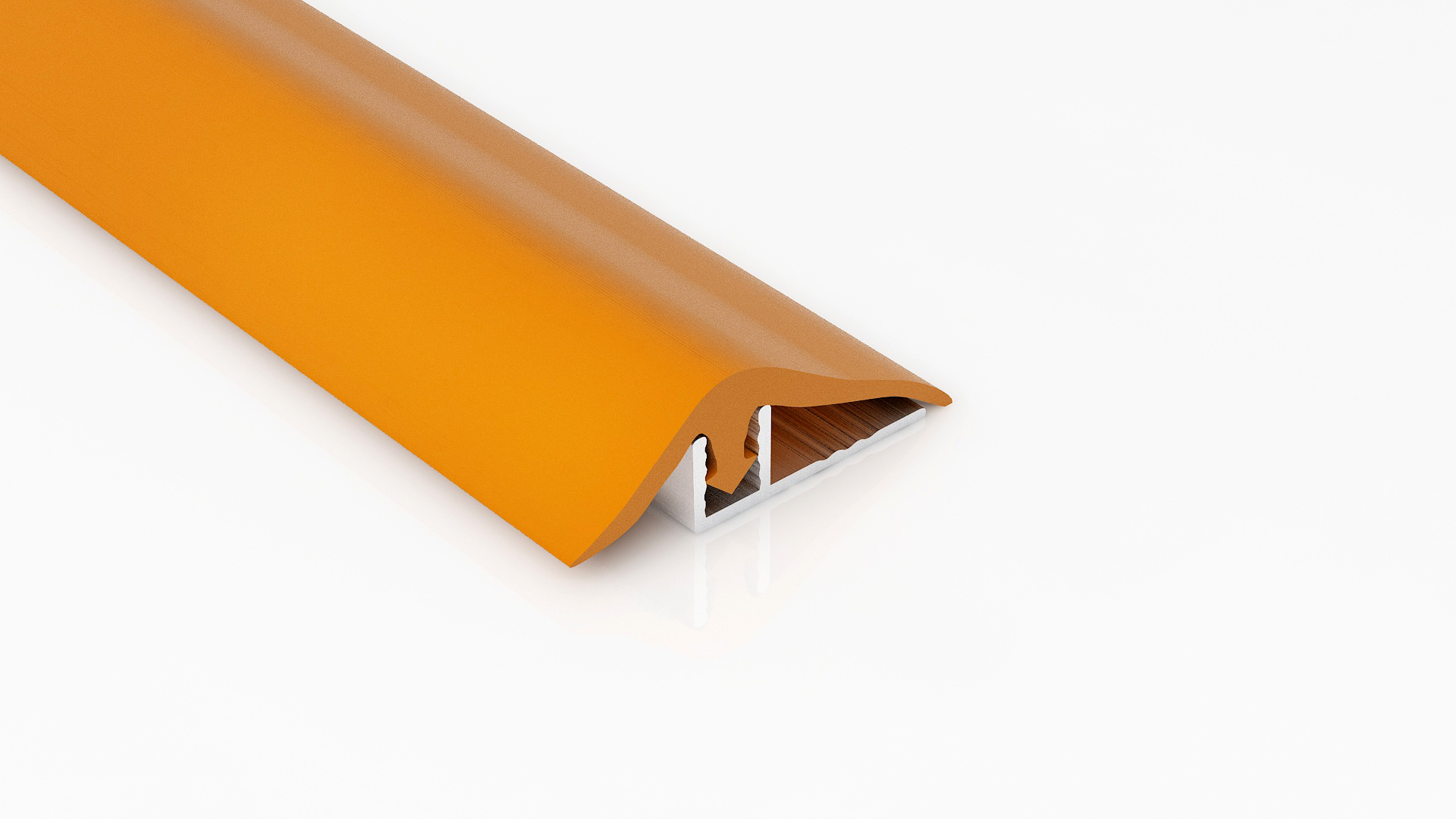

Clip-Top Type Floor Transition Strip

Item No.: P28/P30
P28/P30 is a ramp top, two-piece flooring transition profile from the Clip-Top fx range, which provides a safe transition between resilient flooring and carpet/carpet tile of 6mm height.
Description
Description
Introduction

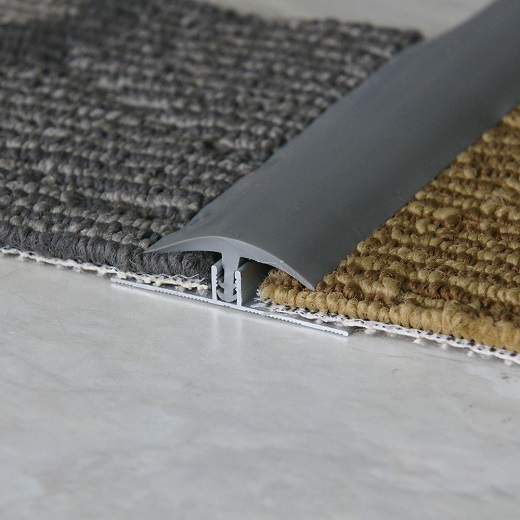

P28/P30 is a ramp top, two-piece flooring transition profile from the Clip-Top fx range, which provides a safe transition between resilient flooring and carpet/carpet tile of 6mm height (compressed thickness). It should always be fitted on top of the resilient flooring when used in a ramp configuration. It allows design flexibility in most commercial situations and is ideal for use in retail high street shops, schools, hotels and some offices.
Technical Data
1. Type: ramp top
2. Environment: interior
3. Material: Top PVC with aluminum base

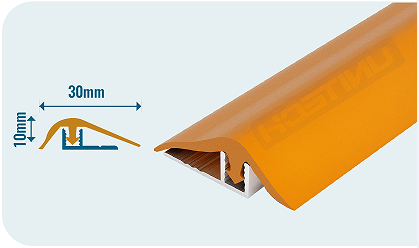

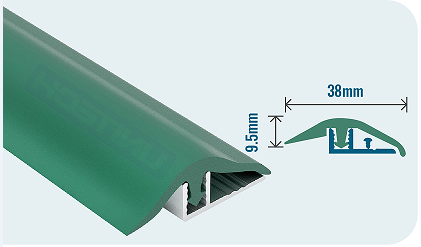

4. Top width: 28/30mm
5. Total height: 9.5/10mm
6. Color: top PVC – grey, green, orange, yellow
7. Fixing: mechanical (screw) and adhesive fix

Installation
1. Ensure that the profile top and base select are compatible with the floorcovering being used.
2. Bases are to be used where straight sections are required.
3. Ensure that the substrate is clean, dry and free from contaminants.
4. Cut the base to size and apply mastic cartridge adhesive to the back of the profile.
5. Fix the base to the substrate in conjunction with mechanical fixings (No.6 screw).
6. Cut the top section to size and using a rubber mallet strike the top section until a secure fix is achieved between top and base.
